Installing a 100-Inch TV: What It Really Takes
130+ lbs of 4K screen on a stacked stone fireplace wall. MKR Systems installs 100-inch TVs in San Diego. Free on-site estimate. Estimate #1090: $5,855.83 total. 888-382-5164.
✓ Completed Install — MKR Systems
100-Inch TV + Sonos Arc · Stacked Stone · Linear Electric Fireplace
Rancho Santa Fe / San Diego area · Cedar beam ceiling · Open floor plan

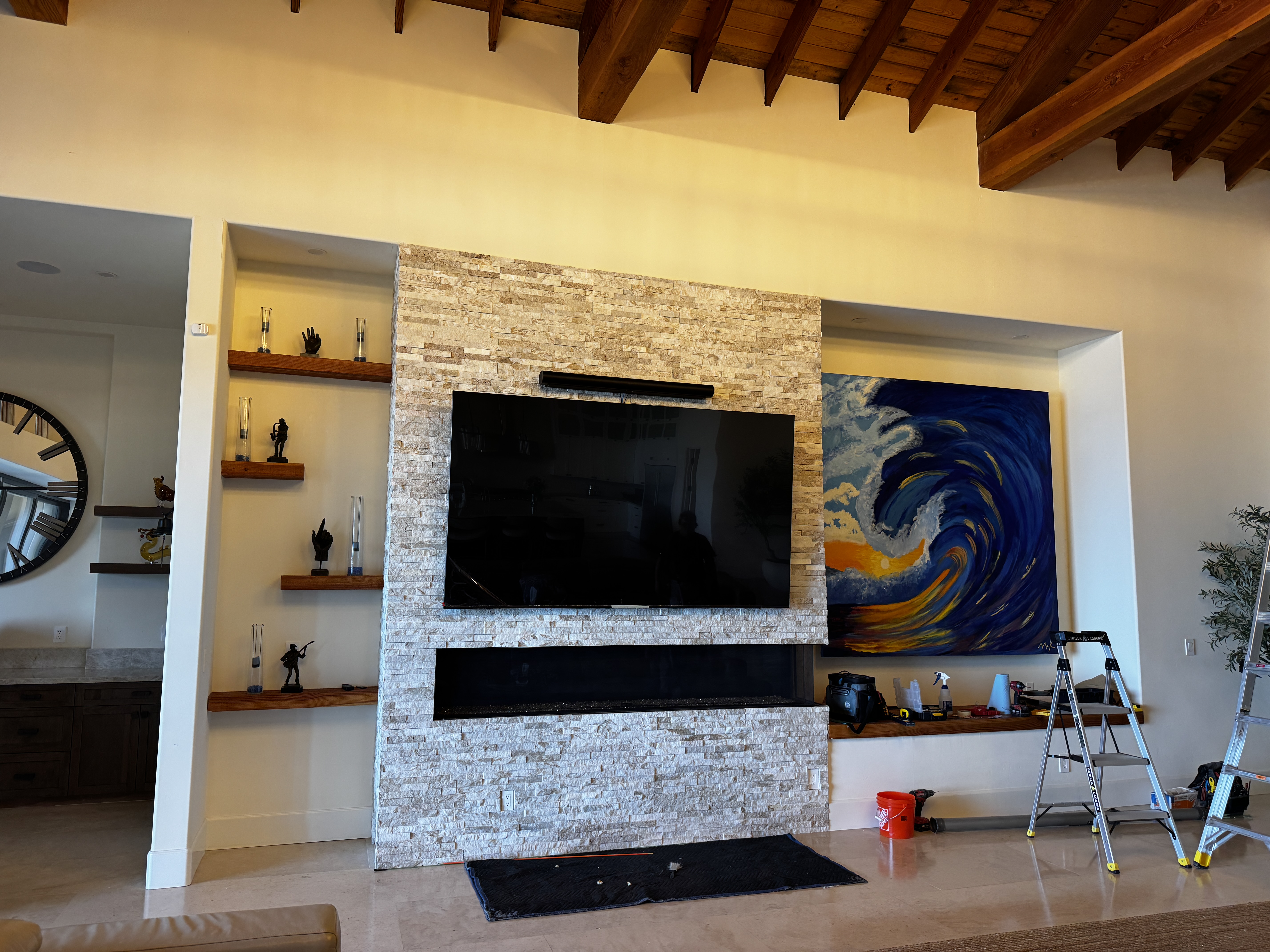

TV Off — True Scale

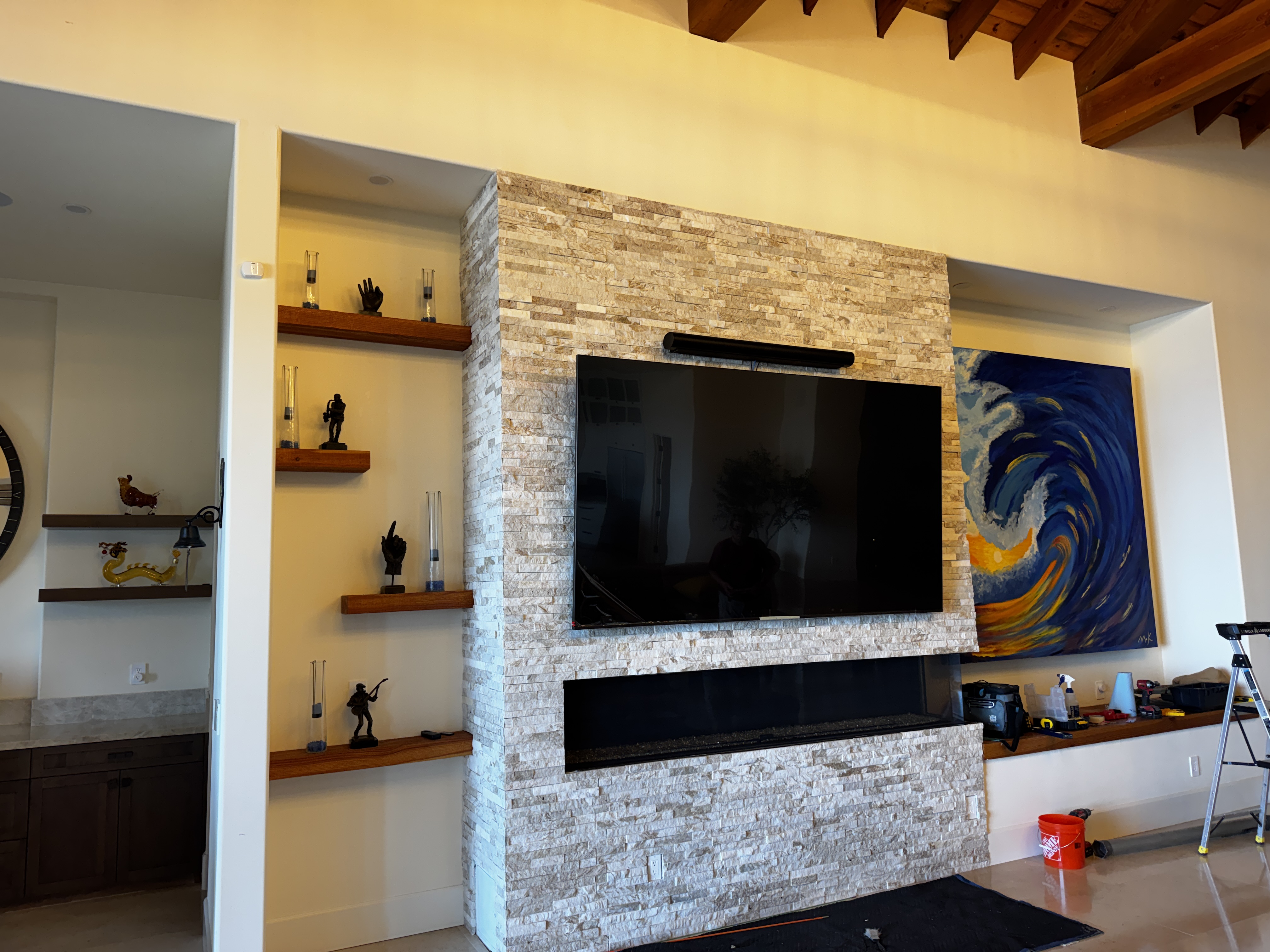

Full Room Context
These photos are from a completed MKR Systems project in the San Diego area. The wall is stacked travertine stone over a concrete masonry substrate — no wood studs accessible from the surface. The fireplace is a linear electric unit recessed into the stone column. Every anchor, every cable, and every clearance measurement in this installation was engineered before a single drill touched the stone.
A 100-inch TV weighs over 130 lbs. The mount, anchors, and wall substrate must support 5× that load — 650 lbs minimum. This is not a job for a single installer with a stud finder.
130+ lbs
Samsung 100" QN80F weight without stand
Source: Samsung official specifications
650 lbs
Minimum anchor system rating (5× TV weight safety standard)
Source: Manhattan / Strong mount installation standards
12°
Optimal tilt angle for above-fireplace viewing — eliminates glare and neck strain
Source: Sanus / ergonomic viewing research
2-person
Minimum crew required — MKR standard for all TV installations over 75 lbs
Source: MKR Systems installation protocol
The Mount: Why It Matters as Much as the TV

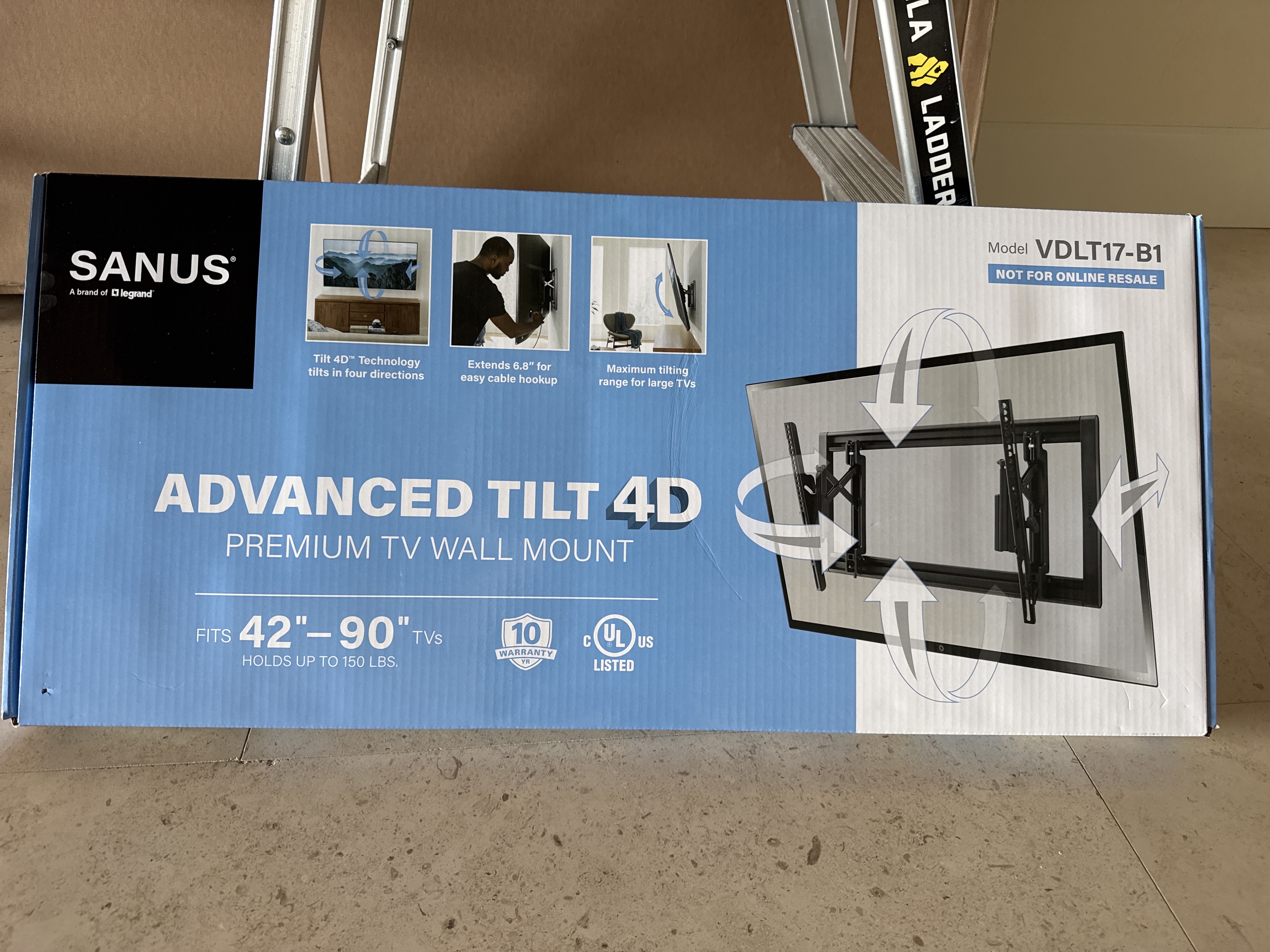

Sanus Advanced Tilt 4D — VDLT17-B1
MKR Systems Recommended Mount
Sanus · Model VDLT17-B1 · UL Listed · 10-Year Warranty
Advanced Tilt 4D
Premium TV Wall Mount
Premium TV Wall Mount
MKR Systems Price
$165
Installed with professional anchoring
- Fits 42"–90" TVs · holds up to 150 lbs — rated for most 85–90" displays
- Tilt 4D Technology — tilts in all 4 directions, not just forward/back
- Extends 6.8" from wall for easy cable hookup during installation
- Maximum tilt range — up to 15° down, essential for above-fireplace installs
- Post-install leveling — fine-tune left/right level after the TV is hung
- C(UL)US listed · Legrand / Sanus 10-year warranty
Note: The Sanus VDLT17-B1 is rated for TVs up to 90". For 100" displays exceeding its rating, MKR Systems uses the Strong Carbon Fixed Mount rated for 100" TVs at $299 — as specified in Estimate #1090 for the Samsung QN80F project. Mount selection is determined by TV size and weight during the free on-site assessment.
The 12-Degree Tilt: Why It Changes Everything
Glare, Reflections, and Why Tilt Is Not Optional Above a Fireplace
Sanus Advanced Tilt 4D · 12° Down
A 12° tilt eliminates
glare, reflections, and neck strain
in a single adjustment
glare, reflections, and neck strain
in a single adjustment
- Sunlight from windows — San Diego homes typically have large south or west-facing windows. Without tilt, afternoon sun hits a flat-mounted screen at a low angle and washes it out entirely. 12° of downward tilt shifts the panel face away from that light path.
- Overhead lighting and skylights — Recessed ceiling lights, pendant fixtures, and skylights all create specular reflections on an untilted screen. Tilt redirects the reflection angle below the viewer's eye line.
- Fireplace glow — A lit linear fireplace below the TV creates upward-angled light that reflects on the lower portion of the screen. Tilt reduces this dramatically.
- Ergonomic viewing angle — A TV mounted above a fireplace is typically 6–12" above the ideal seated eye level. Tilt compensates so the viewer looks at the screen straight-on — preventing neck strain during extended viewing.
- 4D adjustment precision — The Sanus VDLT17-B1 tilts left-right as well as forward-back. In rooms where the primary seating is offset from the TV centerline, lateral tilt corrects the viewing angle without repositioning the mount.
TV
12°
Downward Tilt
Viewer eye line →
Diagram: 12° downward tilt from a stone wall mount above a fireplace. The panel face angle shifts the reflection path of overhead light sources below the viewer's seated eye line. Without tilt, ambient light from windows and ceiling fixtures hits the screen at the same angle — and reflects directly into the viewer's eyes. Source: Sanus Advanced Tilt 4D product specification; ergonomic display research.
Wall Substrate — The Decision That Determines Everything
What Is Behind Your Wall, and Why It Changes the Anchor Strategy
The wall surface is what you see. The substrate is what the anchor actually holds. For a 100-inch, 130-lb TV, the substrate is the only thing that matters — and it determines the anchor type, the installation time, and whether a blocking plate is required.
| Wall Type | What's Behind It | Anchor Strategy | Complexity |
|---|---|---|---|
| Drywall over wood studs | 2×4 or 2×6 framing at 16" or 24" on center | Lag screws into studs. Blocking plate if VESA pattern doesn't align with stud spacing. | Standard |
| Stacked / ledger stone veneer (this project) |
Stone tiles over concrete board or drywall — substrate may or may not have accessible studs | Diamond drill through stone → masonry anchors into substrate. Blocking plate distributes load across multiple studs. Required for 100" TVs. | Advanced |
| Travertine / marble slab | Solid stone slab over mortar bed | Diamond core drill. Wedge anchors into mortar/substrate. Load test all points. 5× weight rating required. | Expert |
| Brick or concrete block | Solid masonry — no wood studs | Hammer drill + masonry bits. Sleeve anchors or wedge anchors. Minimum 4 points at 200 lbs each. | Advanced |
| Plaster over lath | Old construction — plaster over wood lath, studs often irregular spacing | Locate studs with deep-scan finder. Lag into studs. Avoid plaster-only anchors for TVs over 50 lbs. | Advanced |
| Steel stud / commercial drywall | Metal framing — common in condos, commercial spaces | Toggle bolts or structural blocking between studs. Steel studs cannot accept lag screws for heavy loads alone. | Advanced |
Why the Free On-Site Assessment Exists
No installer can tell you what anchoring strategy is correct from a photo or a phone call. Wall substrate, stud spacing, fireplace clearance, cable routing path, and viewing geometry must all be assessed in person — before a quote is issued and before a drill touches the wall. MKR Systems provides this assessment at no charge, anywhere in San Diego County. It is the only responsible way to quote a 100-inch installation.
Free On-Site Estimate — We Come to You
We visit your location, assess the wall substrate, check fireplace clearance,
and identify the right mount and anchor strategy — before we quote anything.
No charge. No obligation. Anywhere in San Diego County.
Mon–Fri 9AM–6PM PT · San Diego, CA · MKR Systems
No charge for site visit
Written estimate same day
No obligation to proceed
San Diego County-wide
Outdoor AV — Same Project, Different Challenge
Outdoor Patio TV on Pink Marble · Pool View · Heatilator Fireplace

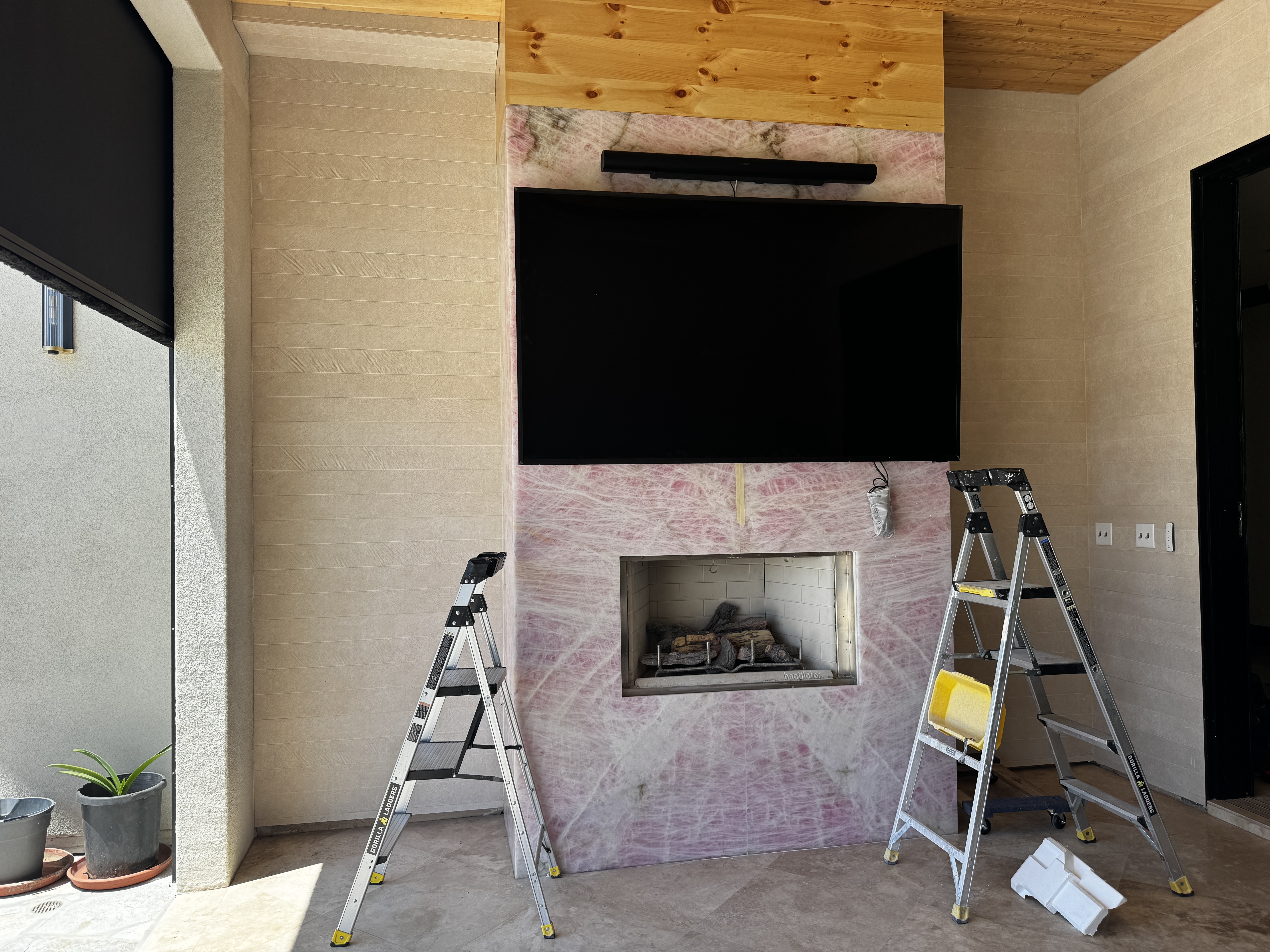

During Installation

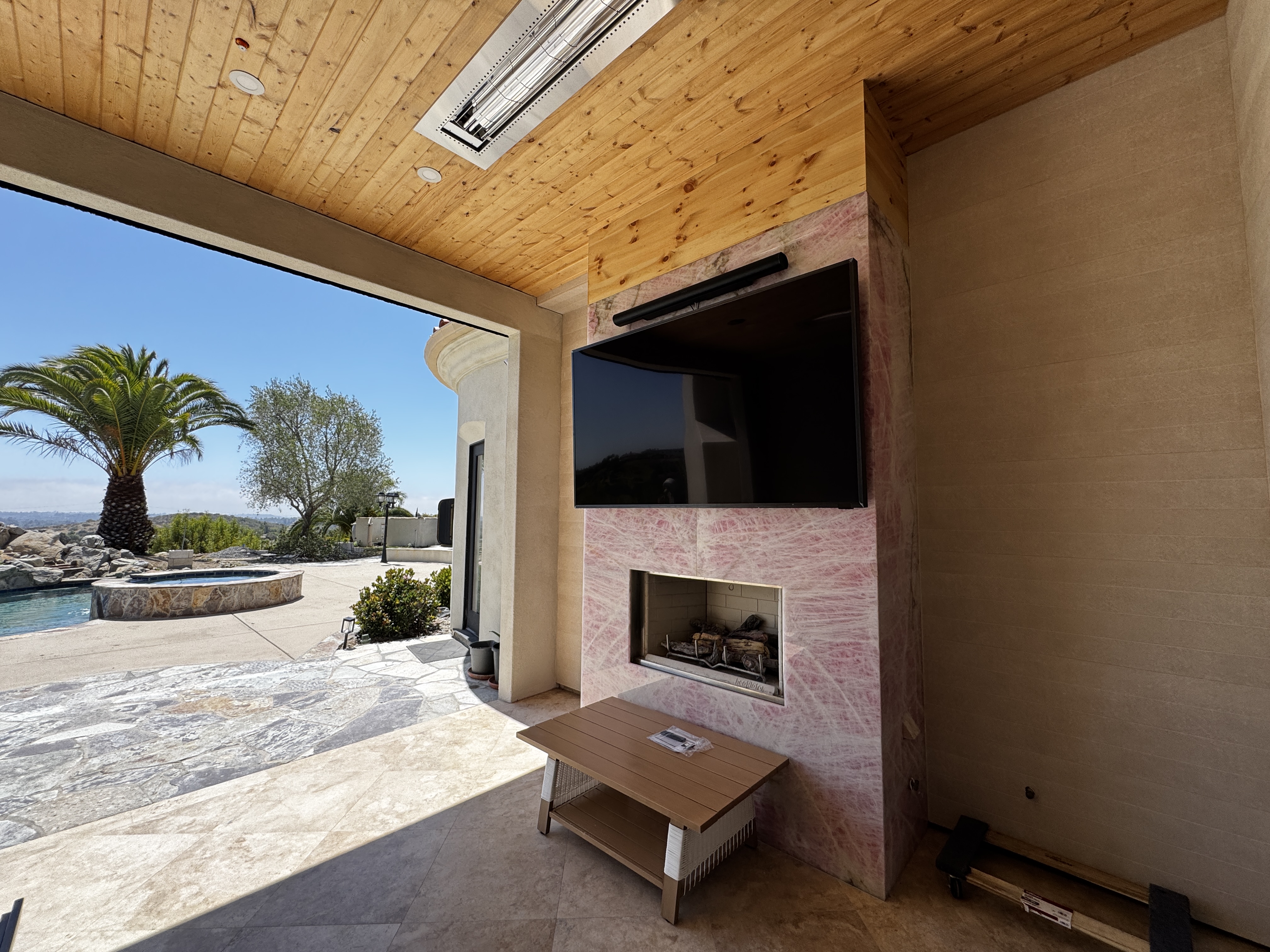

Completed
This outdoor installation presented every challenge simultaneously: pink quartzite marble (non-uniform, requires pressure-adjusted diamond drilling), a Heatilator gas fireplace requiring heat clearance testing, full southern California sun exposure requiring UV-rated hardware, and a pool view that created glare from water reflection at specific times of day. The Sanus Advanced Tilt 4D was adjusted post-install to eliminate the pool-surface reflection that appeared on the lower third of the screen during afternoon hours. Two Gorilla Ladders, a 2-person crew, and a 4-hour installation window.
Complete Project Pricing — Estimate #1090
Samsung 100" QN80F — What MKR Systems Supplies and Installs
MKR Systems supplies, delivers, and installs the complete system — TV, mount, and labor. The estimate below is from an actual MKR Systems project (Estimate #1090, May 2026, Rancho Santa Fe, CA).
| Item | Qty | Unit Price | Amount |
|---|---|---|---|
| Samsung 100" QN80F Series Neo QLED Mini LED 4K UHD SamsungVision AI Smart Tizen TV (2025) · Neo QLED Mini LED · 4K · HDR · Tizen OS | 1 | $4,499.00 | $4,499.00 |
| Strong Carbon Fixed Mount — 100" TV StrongCarbon Series · rated for 100" displays · carbon fiber construction · ultra-low profile | 1 | $299.00 | $299.00 |
| Field Setup — TV Mount and TV Installation 2-person crew · wall assessment · anchor installation · cable routing · calibration · walkthrough | 2 | $325.00 | $650.00 |
| Subtotal | $5,448.00 | ||
| Tax (CA 7.48%) | $407.83 | ||
| TOTAL | $5,855.83 | ||
Actual Estimate #1090 issued by MKR Systems Inc, May 6, 2026 · Rancho Santa Fe, CA · Prices subject to change. Free on-site estimate required before final quote on any 100-inch project.
What $650 Installation Includes
Every Step of a 100-Inch TV Installation — No Hidden Costs
-
Pre-installation wall assessment — substrate identification, stud location, load path verification, fireplace clearance measurement
-
Structural blocking installation if required — load-distribution plate anchored to framing behind stone or masonry surfaces
-
Mount installation with commercial-grade anchors — torqued to spec, pull-tested before TV is hung
-
2-person TV lift and hang — 130-lb TVs are never a single-person job. Both installers are on-site for the lift, always.
-
Cable management — HDMI, power, and audio routed per agreed plan. Surface raceway or in-wall conduit as assessed during free estimate.
-
Tilt calibration — final tilt angle set with digital level and verified against seated eye line. Sanus 4D adjusted for left-right level after hang.
-
All sources connected and tested — streaming device, soundbar, HDMI switch, Apple TV, or other sources connected and verified operational.
-
Not included: electrical outlet relocation (requires licensed electrician), new in-wall conduit through masonry (quoted separately after on-site assessment), soundbar mounting (available as add-on)
Frequently Asked Questions
What San Diego Homeowners Ask About 100-Inch TV Installation
What does the free on-site estimate include — and is it really free?
Yes, completely free. MKR Systems visits your location, walks through the installation site, identifies the wall substrate, assesses fireplace clearance, maps the cable routing path, and discusses your TV and mount preferences. You receive a written itemized estimate the same day. There is no charge for the visit and no obligation to proceed. Call 888-382-5164 to schedule.
How does the Sanus Advanced Tilt 4D eliminate glare in a San Diego home?
San Diego's southern exposure means afternoon sunlight enters most living rooms at a low angle — exactly the angle that reflects off a flat-mounted TV screen. The Sanus VDLT17-B1 allows up to 15° of downward tilt, which rotates the panel face away from that light path. The 4D capability means left-right tilt can also correct for pool-surface reflections or offset window glare that single-axis mounts cannot address. MKR Systems calibrates the final tilt angle on every installation using seated eye-line measurement.
Can a 100-inch TV be mounted on a stacked stone fireplace wall?
Yes — and we have done it multiple times in San Diego. The key requirement is a structural blocking plate installed behind the stone veneer, anchored to the wall framing. The stone surface itself cannot be the load-bearing element for a 130-lb TV. MKR Systems drills through the stone with diamond bits, installs the blocking plate into the substrate, and mounts the bracket to the plate — distributing the load correctly across the wall framing.
Is the Samsung QN80F 100-inch the right TV for a San Diego outdoor patio?
The Samsung QN80F is designed for indoor installation. For outdoor patios with full or partial sun exposure, MKR Systems recommends Samsung The Terrace (IP56-rated) or SunBrite displays rated for outdoor environments. For covered patios with limited direct sun, the QN80F can be used with appropriate consideration. This is assessed during the free on-site estimate based on your specific patio exposure conditions.
Does MKR Systems install 100-inch TVs in Rancho Santa Fe and La Jolla?
Yes. MKR Systems serves all of San Diego County including Rancho Santa Fe, La Jolla, Del Mar, Carmel Valley, Poway, Scripps Ranch, and surrounding areas. The project photographed on this page is from a Rancho Santa Fe installation (Estimate #1090). Call 888-382-5164 to schedule a free on-site estimate at your location.
FREE On-Site Estimate
Ready for a 100-Inch TV?
We Come to You First.
Wall assessment. Fireplace clearance check. Mount recommendation.
Written quote. Same day. Zero charge.
San Diego · Rancho Santa Fe · La Jolla · Del Mar · Carmel Valley · Poway · Scripps Ranch
888-382-5164Mon–Fri 9AM–6PM PT · MKR Systems · San Diego, CA
→ Call for Free Estimate Book Free Consultation →
A 100-inch TV is a significant investment. The installation should match.
Stone walls require diamond drilling. Heavy TVs require 2-person crews. Above-fireplace installs require tilt calibration. Outdoor installs require UV-rated hardware and substrate sealing. MKR Systems handles every one of these considerations — and identifies them during a free on-site visit before any work begins. Call 888-382-5164. The estimate is free. The work is done right.
Stone walls require diamond drilling. Heavy TVs require 2-person crews. Above-fireplace installs require tilt calibration. Outdoor installs require UV-rated hardware and substrate sealing. MKR Systems handles every one of these considerations — and identifies them during a free on-site visit before any work begins. Call 888-382-5164. The estimate is free. The work is done right.
